Concrete wall retaining systems cost $20-60 per square foot and last 40-100 years. They include poured concrete, concrete blocks, and precast options. Proper drainage and engineering design determine wall performance. Concrete offers superior durability compared to timber or wood alternatives.
Does your sloped yard create drainage problems? Concrete wall retaining systems solve erosion issues while adding functional space to your property. This guide covers costs, types, installation methods, and maintenance requirements.
Types of Concrete Wall Retaining Systems
Poured Concrete Retaining Walls
Poured concrete walls create monolithic structures using liquid concrete poured into forms. The process requires a concrete footing, rebar reinforcement, and proper curing time.
Poured and precast concrete are the most expensive in this category, typically costing $30-60 per square foot installed. These walls handle heights exceeding 8 feet and provide waterproof barriers when properly sealed.
Construction involves excavating for footings, building wooden or metal forms, placing rebar mesh, and pouring concrete. The process takes 2-3 days plus curing time before form removal.

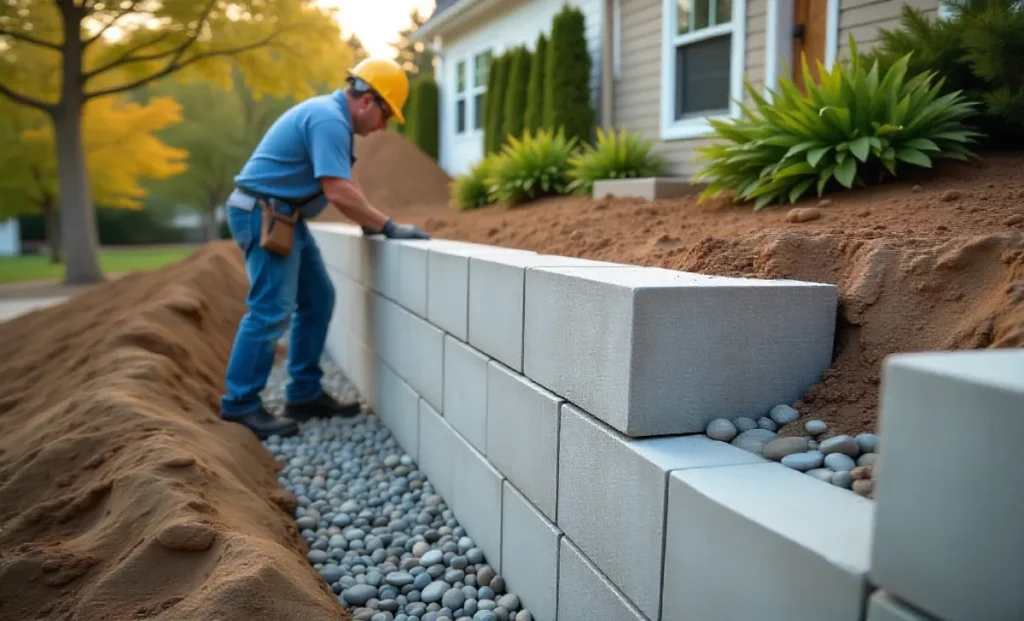

Concrete Block Retaining Walls
Concrete blocks offer modular construction using interlocking precast units. Each block weighs 50-80 pounds and features hollow cores for reinforcement options.
Block walls cost $20-45 per square foot and accommodate curves better than poured alternatives. Installation requires base preparation, block stacking, and backfill drainage, but no specialized equipment.
Popular block types include:
- Standard concrete blocks (gray finish)
- Split-face blocks (textured appearance)
- Interlocking segmental blocks
- Colored concrete blocks
Precast Concrete Panels
Precast panels arrive manufactured to specifications. Crane installation positions large sections quickly, reducing on-site construction time.
These systems work best for commercial applications or large residential projects. Costs range $35-55 per square foot, including installation and crane rental.
Concrete Wall Retaining Cost Analysis
Installation Cost Breakdown
The average cost to build a retaining wall is $20 to $50 per square foot for standard residential projects. Professional installation accounts for 60-70% of total project costs.
Cost factors include:
- Wall height and length
- Site access and excavation requirements
- Drainage system complexity
- Local labor rates
- Engineering requirements
The average homeowner paying about $5,463 for a concrete block retaining wall that is 25 feet long and 4 feet high, fully installed with reinforced concrete footing.
Material vs. Labor Costs
Materials represent 30-40% of total project costs. A local hardscape contractor will charge an average of $50 to $75 per hour or $15 to $50 per square foot, depending on project complexity.
Concrete costs $100-150 per cubic yard. Steel reinforcement adds $2-5 per square foot. Drainage materials cost $3-8 per linear foot.
Design Considerations for Concrete Retaining Walls
Height and Engineering Requirements
Walls exceeding 4 feet typically require engineering approval and building permits. Structural engineers calculate soil pressure, foundation requirements, and reinforcement specifications.
Engineering costs range $800-2,500 for residential walls. Commercial projects may require geotechnical soil analysis, adding $1,500-3,000 to project costs.
Drainage System Design
Proper drainage prevents wall failure caused by hydrostatic pressure. Water buildup behind walls creates forces exceeding design limits.
Standard drainage includes:
- 12-inch gravel backfill zone
- Perforated drain pipe at footing level
- Geotextile fabric separation
- Weep holes every 6-8 feet
Poor drainage causes 80% of retaining wall failures within the first 10 years.
Foundation and Footing Requirements
Concrete walls require foundations extending below the frost line depth. Foundation width equals 50-70% of wall height for gravity walls.
Reinforced walls use narrower foundations but require deeper excavation for heel and toe footings. Foundation preparation accounts for 25-35% of installation time.
Installation Process and Timeline
Site Preparation Phase
Excavation removes existing soil and vegetation. Utility marking prevents damage to underground services. Site access determines equipment requirements and may affect costs.
Typical excavation extends 16 inches behind the wall and 10 inches below grade. Soil disposal adds $200-600 per project, depending on volume and local rates.
Construction Timeline
Block wall installation: 2-4 days for walls under 100 linear feet
Poured concrete walls: 3-5 days, including curing time
Precast panel systems: 1-2 days with crane access
Weather conditions affect concrete curing. Cold weather requires heated enclosures or special concrete mixes. Hot weather demands frequent watering and curing compounds.
Durability and Maintenance Requirements
Expected Lifespan
Well-built concrete walls may exceed 100 years, while timber walls generally range from 15 to 30 years. Proper construction and drainage maximize wall lifespan.
The typical lifespan of these walls is between 40 and 100 years, although they can persist for several decades with regular maintenance.
Maintenance Schedule
Annual maintenance includes:
- Cleaning weep holes and drain outlets
- Inspecting for cracks or settlement
- Clearing vegetation from the wall face
- Checking joint sealants
Preventive maintenance costs $200-500 annually but prevents costly repairs. Major repairs average $2,000-8,000, depending on damage extent.
Common Repair Issues
Cracking occurs due to settlement, freeze-thaw cycles, or inadequate reinforcement. Surface repairs using concrete patching compounds cost $300-800 per section.
Structural repairs require professional assessment. Foundation undermining may necessitate wall reconstruction costing 60-80% of the original installation.
Comparing Concrete Options
Poured vs. Block Systems
Poured concrete provides superior strength for tall walls but requires skilled installation. Block systems offer design flexibility and easier repairs.
Block walls accommodate curves naturally, while poured walls require expensive curved forms. Color options favor block systems with multiple factory finishes available.
Aesthetic Enhancement Options
Concrete accepts various finishes, including:
- Stamped textures
- Integral color additives
- Stone or brick veneer facing
- Stucco or painted finishes
Enhancement costs range $5 to 15 per square foot, depending on complexity. Professional installation ensures proper adhesion and weather resistance.
Frequently Asked Questions
How deep should concrete retaining wall footings be?
Footings must extend below the frost line depth, typically 30-48 inches, depending on the climate zone. Foundation width should equal 50-70% of wall height for gravity walls.
Can I build a concrete retaining wall without permits?
Walls under 4 feet high generally don’t require permits, but local codes vary. Check with building departments before starting construction to avoid compliance issues.
What causes concrete retaining walls to fail?
Poor drainage causes 80% of failures. Other factors include inadequate foundations, missing reinforcement, and improper backfill materials. Professional design prevents most failure modes.
How long does concrete need to cure before backfilling?
Wait 24-48 hours minimum before backfilling. Full strength develops over 28 days. Rushing backfill operations can crack or damage walls before concrete reaches design strength.
Should I waterproof my concrete retaining wall?
Waterproofing prevents moisture penetration and extends wall life. Apply membrane waterproofing before backfilling. Costs range $3-8 per square foot, but prevent expensive future repairs.
